Question about using ShapeWorks for transfemoral prosthetic socket shapes

1

Dear ShapeWorks team,

Your application looks fantastic. I was wondering whether ShapeWorks can also be applied to shapes derived from transfemoral prosthetic sockets (specifically the upper portion). I ask because these shapes differ from anatomical models; they are open structures rather than fully closed or “round” meshes.

You can find examples of the shapes here: https://zenodo.org/records/14065668

I previously tried using MeshMonk, but it failed to process these meshes, which is why I’m curious whether ShapeWorks would handle them better.

Finally, is it possible to export correspondence-landmarked meshes from ShapeWorks?

Kind regards,

2

Yes, ShapeWorks seems to be able to model these shapes. I’ve created a shape model using ShapeWorks Studio and placed it here:

https://www.sci.utah.edu/~amorris/shapeworks/socket.zip

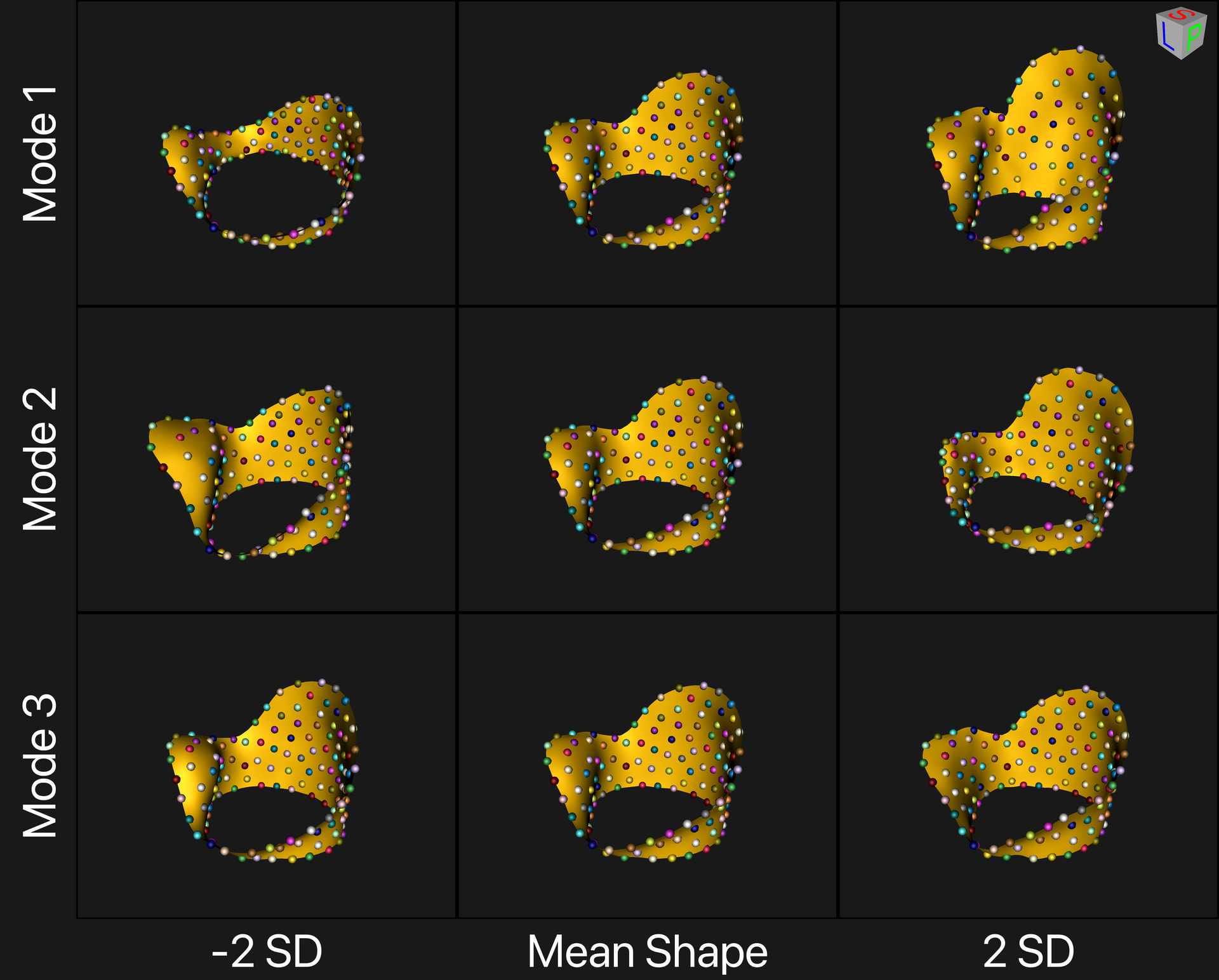

image3216×2090 859 KB

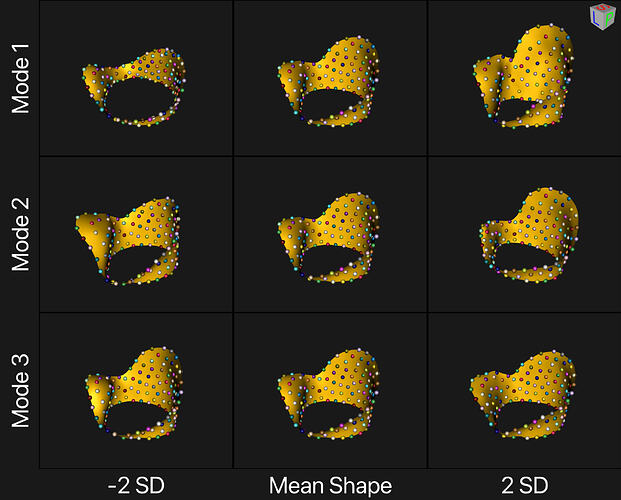

socket_pca
socket_pca1920×1544 342 KB

Regarding your question about exporting correspondence-landmarked meshes, can you clarify a bit more about what you mean?

In ShapeWorks Studio, we can export the correspondence points as well as the reconstructed meshes for each shape, which would be dense vertices/meshes for each shape in correspondence.

3

Thank you very much for your efforts and for providing the information and files.
Today, I have been trying to follow the same steps myself, but I am currently stuck: I am unable to click the “Run Optimize” button, both in the files you provided and in the example files from ShapeWorks. I have tried a lot to find the issue but so far I failed…
I have also attached a log file that may help identify the problem.
I hope you might be able to assist me.

image.png405×684 12.4 KB

(Attachment studio-2025-11-04_15_40_18.txt is missing)

4

I can see that my text file is missing so I included a small part of the text file here:

2025-11-04 15:42:07.653] [error] Program crashed, stacktrace:
[2025-11-04 15:42:07.656] [error] SymInit: Symbol-SearchPath: '.;C:\Users\z804169\Downloads\socket\socket;C:\Program Files\ShapeWorks\bin;C:\WINDOWS;C:\WINDOWS\system32;SRV*C:\websymbols*http://msdl.microsoft.com/download/symbols;', symOptions: 530, UserName: 'Z804169'

[2025-11-04 15:42:07.656] [error] OS-Version: 6.2.9200 () 0x100-0x1

[2025-11-04 15:42:08.002] [error] C:\Program Files\ShapeWorks\bin\ShapeWorksStudio.exe:ShapeWorksStudio.exe (00007FF6378B0000), size: 50081792 (result: 0), SymType: 'PDB', PDB: 'C:\Program Files\ShapeWorks\bin\ShapeWorksStudio.pdb'

[2025-11-04 15:42:08.005] [error] C:\WINDOWS\SYSTEM32\ntdll.dll:ntdll.dll (00007FF880A50000), size: 2064384 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\SYSTEM32\ntdll.dll', fileVersion: 6.2.19041.6456

[2025-11-04 15:42:08.006] [error] C:\WINDOWS\System32\KERNEL32.DLL:KERNEL32.DLL (00007FF880370000), size: 794624 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\KERNEL32.DLL', fileVersion: 6.2.19041.5915

[2025-11-04 15:42:08.008] [error] C:\WINDOWS\System32\KERNELBASE.dll:KERNELBASE.dll (00007FF87E650000), size: 3104768 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\KERNELBASE.dll', fileVersion: 6.2.19041.6280

[2025-11-04 15:42:08.010] [error] C:\WINDOWS\System32\ADVAPI32.DLL:ADVAPI32.DLL (00007FF87F240000), size: 724992 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\ADVAPI32.DLL', fileVersion: 6.2.19041.6328

[2025-11-04 15:42:08.012] [error] C:\WINDOWS\System32\msvcrt.dll:msvcrt.dll (00007FF87F480000), size: 647168 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\msvcrt.dll', fileVersion: 7.0.19041.3636

[2025-11-04 15:42:08.016] [error] C:\WINDOWS\System32\sechost.dll:sechost.dll (00007FF87F060000), size: 651264 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\sechost.dll', fileVersion: 6.2.19041.6328

[2025-11-04 15:42:08.018] [error] C:\WINDOWS\System32\RPCRT4.dll:RPCRT4.dll (00007FF87EDC0000), size: 1179648 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\RPCRT4.dll', fileVersion: 6.2.19041.6280

[2025-11-04 15:42:08.020] [error] C:\WINDOWS\System32\bcrypt.dll:bcrypt.dll (00007FF87E0E0000), size: 159744 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\bcrypt.dll', fileVersion: 6.2.19041.5369

[2025-11-04 15:42:08.022] [error] C:\WINDOWS\System32\USER32.dll:USER32.dll (00007FF87EA70000), size: 1708032 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\USER32.dll', fileVersion: 6.2.19041.6456

[2025-11-04 15:42:08.024] [error] C:\WINDOWS\System32\win32u.dll:win32u.dll (00007FF87E380000), size: 139264 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\win32u.dll', fileVersion: 6.2.19041.6456

[2025-11-04 15:42:08.025] [error] C:\WINDOWS\System32\GDI32.dll:GDI32.dll (00007FF87EC30000), size: 176128 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\GDI32.dll', fileVersion: 6.2.19041.6157

[2025-11-04 15:42:08.029] [error] C:\Program Files\ShapeWorks\bin\Qt5Network_conda.dll:Qt5Network_conda.dll (00007FF86A720000), size: 1421312 (result: 0), SymType: '-exported-', PDB: 'C:\Program Files\ShapeWorks\bin\Qt5Network_conda.dll', fileVersion: 5.15.4.0

[2025-11-04 15:42:08.033] [error] C:\Program Files\ShapeWorks\bin\xlnt.dll:xlnt.dll (00007FF850D00000), size: 2654208 (result: 0), SymType: '-exported-', PDB: 'C:\Program Files\ShapeWorks\bin\xlnt.dll'

[2025-11-04 15:42:08.034] [error] C:\WINDOWS\SYSTEM32\OPENGL32.dll:OPENGL32.dll (00007FF86A5F0000), size: 1212416 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\SYSTEM32\OPENGL32.dll', fileVersion: 6.2.19041.5794

[2025-11-04 15:42:08.035] [error] C:\WINDOWS\System32\gdi32full.dll:gdi32full.dll (00007FF87E950000), size: 1150976 (result: 0), SymType: '-exported-', PDB: 'C:\WINDOWS\System32\gdi32full.dll', fileVersion: 6.2.19041.6157
5

Hi, you will either need to groom the data, or check the box for “skip grooming” in the Grooming module:
